25A 3 STAGE INTELLI-CHARGE 9-32V DEEP CYCLE DUAL BATTERY CHARGER

R4700

A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs.

idc25l.tag.0
IDC25L-2
IDC25_feature-2
IDC25L-4
IDC25L-5
IDC25L-6
IDC25L-dim-diag

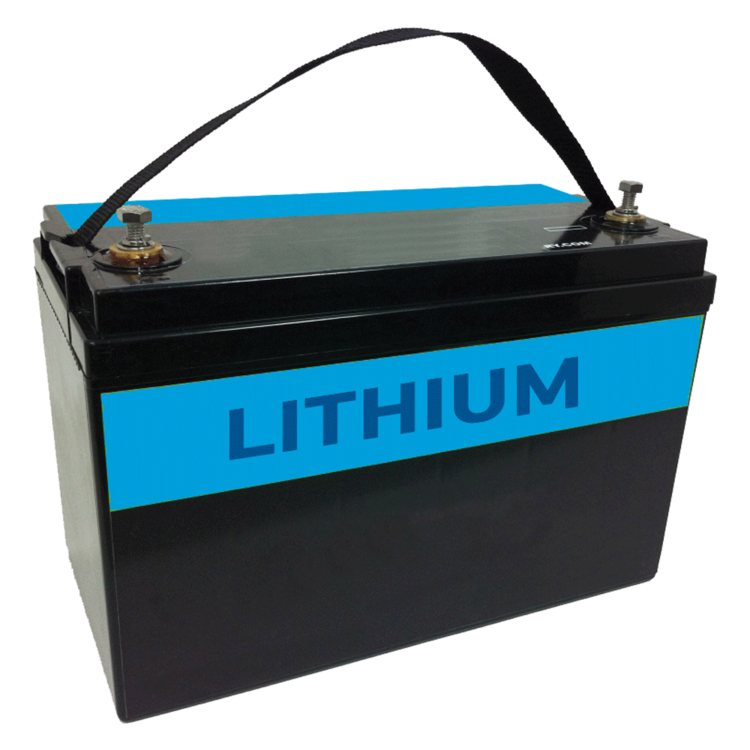

Lithium-technology
2-year-warranty

Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Dual charging modes
Engineered to work with both smart and conventional alternators

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs

Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection

Range features

PART NO

IDC25

CHARGE TYPE

3 Stage

ALTERNATOR INPUT VOLTAGE

9-32Vdc

MAX SOLAR INPUT

23Vdc, 385W

OUTPUT CURRENT

Input 9-11Vdc 20A,
Input 11-32Vdc 25A

BACK DRAIN ON AUX BATTERY

9.5-10.5mA

CHARGER CONTROL

Gel: 14.1V,
AGM: 14.4V
Wet: 14.7V,
Calcium: 15.4V

BATTERY CAPACITY

75-300Ah

BATTERIES SUPPORTED

Gel, AGM, Wet & Calcium

SMART ALTERNATOR

12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V
Turn Off: Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V
Turn Off: Turn Off: <25.6V

OPERATING TEMPERATURE

-10°C to +80°C
